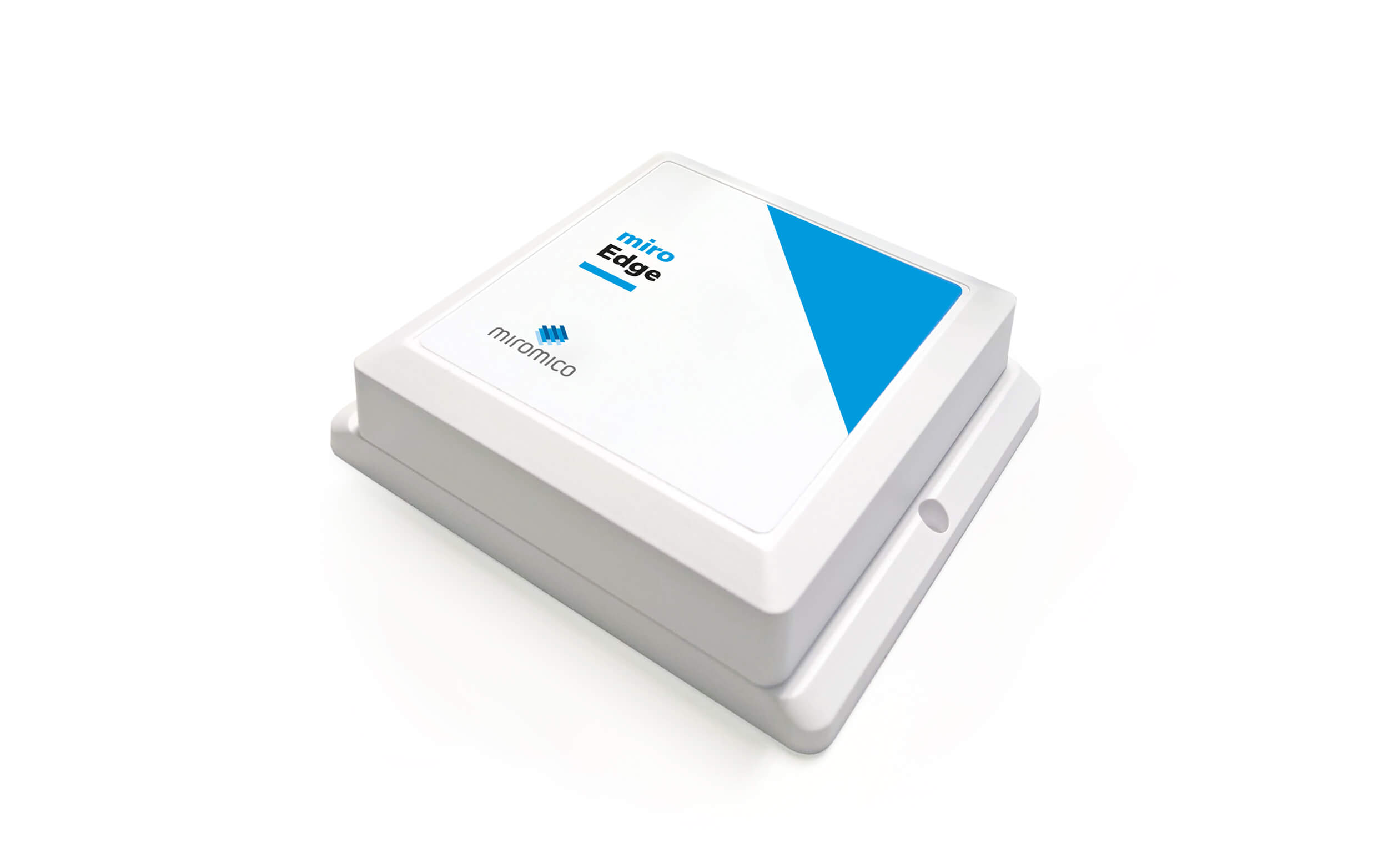

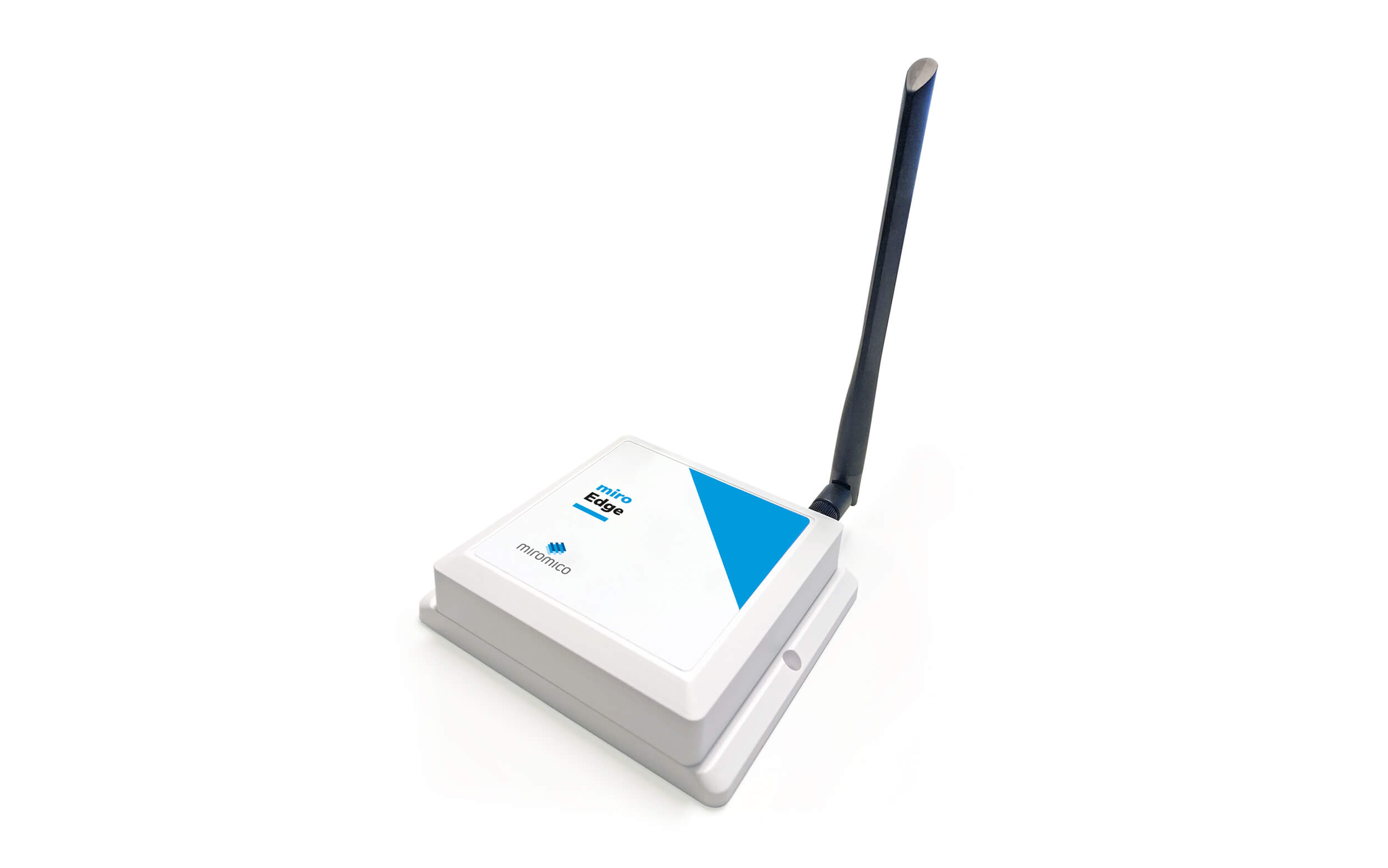

miro Edge
Customizable and modular mioty indoor gateway.
miro Edge Indoor mioty® gateway is available as a standard and white-label product. The small form-factor, integrated interfaces such as Ethernet, Power over Ethernet (PoE), Mini PCIe, and its underlying OpenWRT based Linux OS enable seamless integration of these base stations into any infrastructure.
Utilizing the built-in web-frontend, the gateway can be configured to communicate with any mioty compatible service center.
The gateway also offers a remote management system, which can be integrated into the customers IT infrastructure. The RMS supports firmware-over-the-air update (FUOTA), remote access, and versatile real-time device health information.
Features
- Support for 868 MHz mioty
- Modular design: 2 × Mini PCIe slots

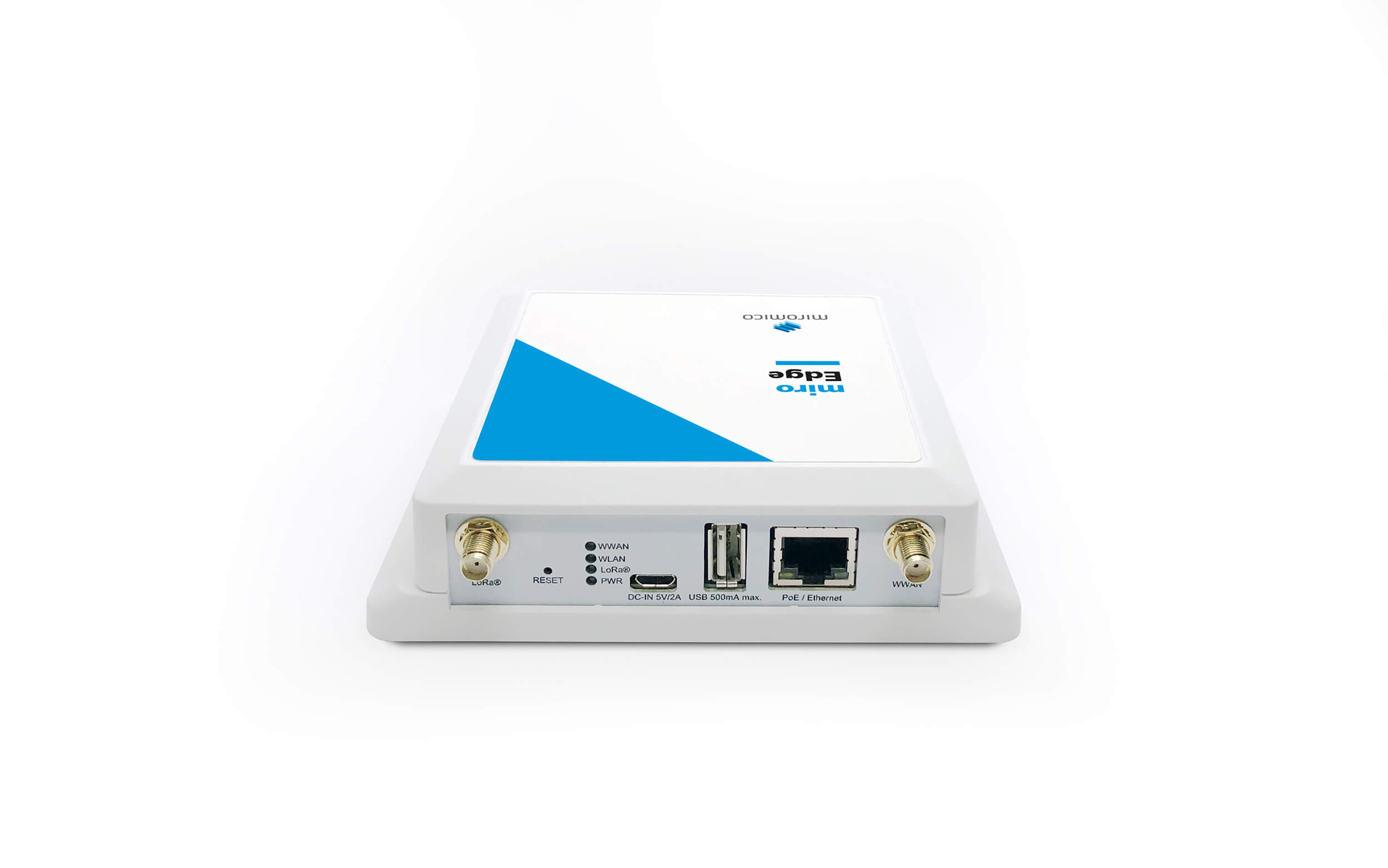

- Ethernet, PoE, USB, Mini PCIe
- Optional cellular connectivity (3G/4G card)
- Flexible remote management
- Customer specific branding and configuration
- Output power up to 27 dBm
Applications
| Part number | Description |
|---|---|
| EDGE-MY-868 | miro Edge, mioty gateway, 868 MHz ISM band, ETH, USB power supply |
| EDGE-MY-868-LTE | miro Edge, mioty gateway, 868 MHz ISM band, ETH, LTE, trial SIM, USB power supply |
