miro Edge Core
Customizable, modular LoRaWAN indoor gateway.
miro Edge Core is a powerful OEM/white-label product family of fully LoRaWAN®- and mioty®-compatible gateways, designed for high-volume deployments.

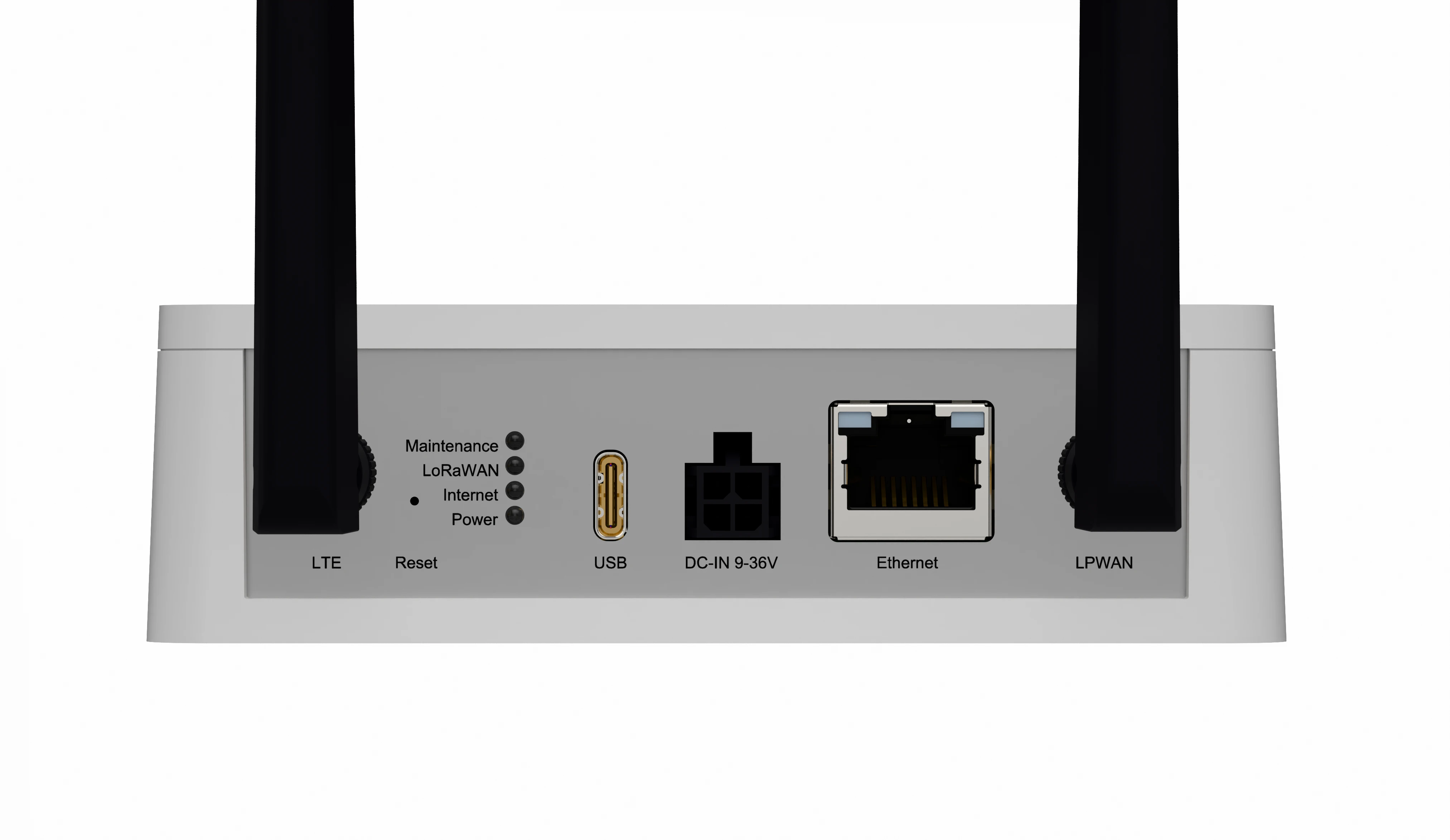

The miro Edge Core family is built around a processing module based on the NXP i.MX6UL CPU, enabling user space applications directly on the device. Its modular design and small form factor combine integrated interfaces including Ethernet, Power over Ethernet (PoE) or DC supply, an integrated LTE modem, Wi-Fi, Bluetooth, and two Mini PCIe connectors.
Running a Yocto-based Linux OS, the gateways integrate seamlessly into diverse infrastructures. The built-in web frontend supports easy configuration across various technologies and frequency bands. A remote management system (RMS) rounds off the feature set with firmware-over-the-air (FOTA) updates, remote access, and real-time device health monitoring — all designed to integrate with customers’ existing IT infrastructures.
Features
- Support for 868/915 MHz/2.4 GHz LoRaWAN
- Modular design: 2 × Mini PCIe slots
- Ethernet, PoE, USB, Mini PCIe
- Cellular connectivity, Wi-Fi, Bluetooth
- Flexible remote management
- Customer specific branding and configuration
Applications
| Part number | Description |
|---|---|
| EDGEC-LW-868-LTE | miro Edge Core, LoRaWAN gateway, 868 MHz ISM band, ETH, LTE, trial SIM, Wi-Fi |
| EDGEC-LW-2G4-LTE | miro Edge Core, LoRaWAN gateway, 2.4 GHz MHz ISM band, ETH, LTE, trial SIM, Wi-Fi |
| EDGEC-MY-868-LTE | miro Edge Core, mioty gateway, 868 MHz ISM band, ETH, LTE, trial SIM, Wi-Fi |
