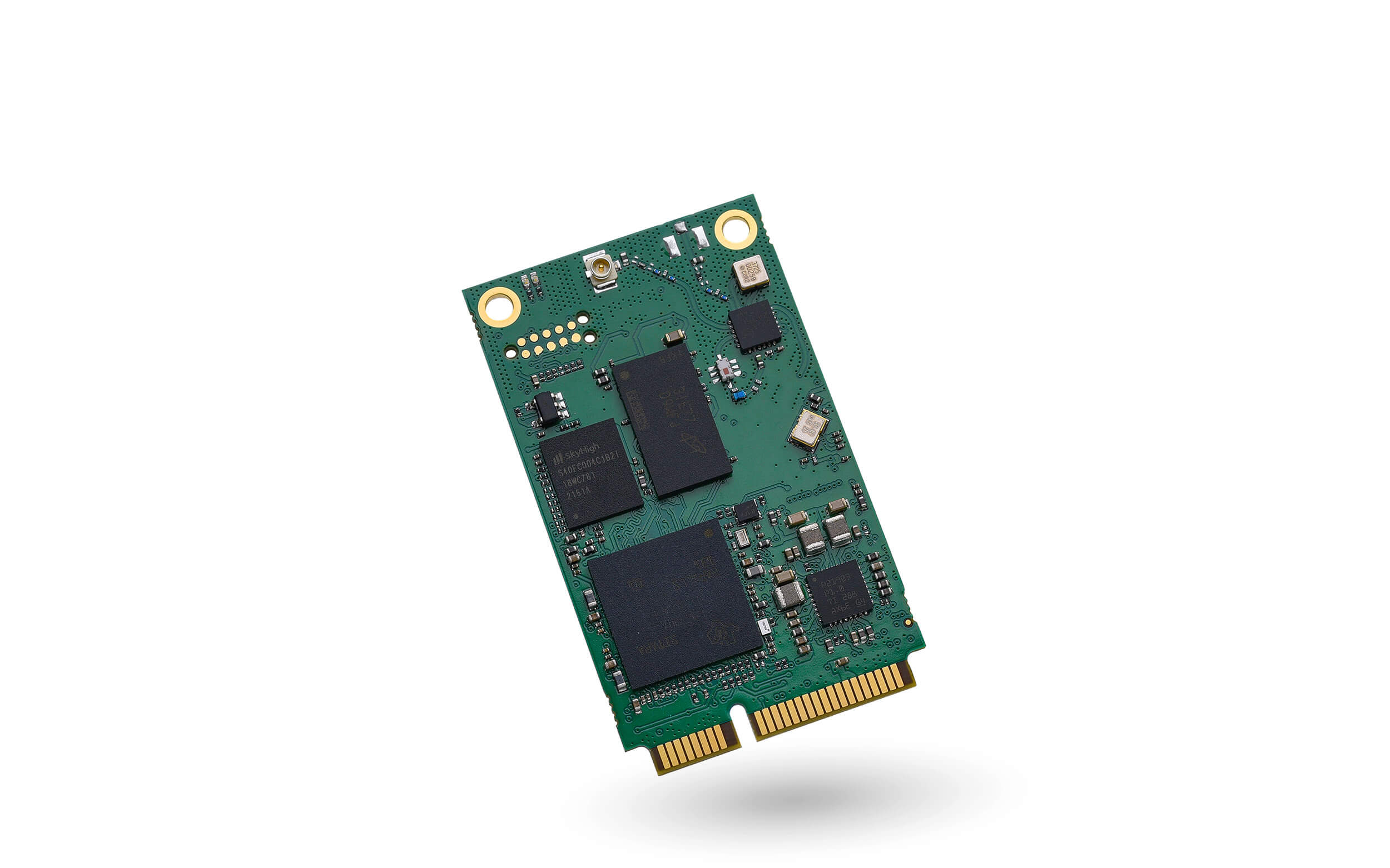

miro EdgeCard mioty

The miro EdgeCard mPCIe mioty^® Base Station Card is a full System-on-Module (SOM) that provides a plug-and-play solution for long-range and low-power wireless communication networks based on the mioty standard. The Mini PCIe card exposes a network interface over a USB 2.0 communication device class (CDC) to interface the mioty Base Station Service Center Interface (BSSCI) data to a host processor.

Moreover, existing edge-level network devices can be upgraded to act as mioty base stations. Any host system capable of USB CDC is supported. Since the decoding of the mioty telegrams is implemented on the card itself, the host CPU no longer requires high computational performance for data processing.

The card is based on a high-performance Sitara processor running the mioty base station core library and implementing software-defined radio (SDR). The device may also be configured to act as a sub-GHz RF I/Q frontend, thus providing full flexibility to build customized solutions and decode various wireless standards.

Furthermore, the card embeds an RF frontend with an integrated Low Noise Amplifier (LNA), reaching a sensitivity of down to -136 dBm, and a Power Amplifier (PA), allowing a transmit output power of up to +27 dBm.

As a versatile and high-performance all-in-one solution, the miro EdgeCard mioty enables the building of high-performance and certified mioty base stations. Due to its high processing capabilities of up to 3.5 million mioty telegrams per day, the miro EdgeCard mioty is perfectly suited for large-scale IoT deployments.
